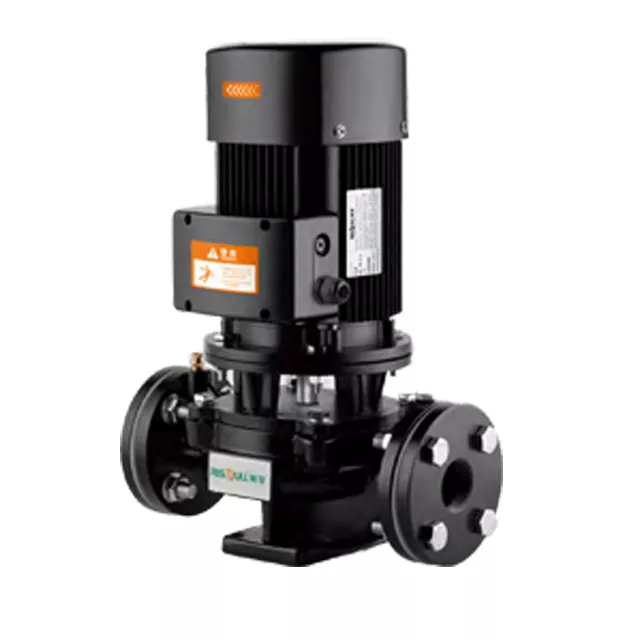

Pompa Sirkulasi Pendingin Kab

Model:40GD

RISEFULL® minangka pabrikan lan pemasok Pompa Sirkulasi Pendingin China profesional, yen sampeyan nggoleki Pompa Dosis Kanggo Kimia, hubungi kita saiki!

Kirim Pitakonan

Deskripsi Produk Data Kinerja Dimensi Instalasi

Ing jantung sistem pendinginan, Pompa Sirkulasi Pendingin kita minangka motor sing berkualitas tinggi sing nyedhiyakake operasi sing dipercaya lan konsisten, mesthekake yen kabutuhan pendinginan sampeyan bisa ditemokake kanthi minimal. Pompa kasebut dirancang kanthi gampang banget kanggo nginstal, tanpa kabel utawa proses instalasi sing rumit. Cukup plug in lan pindhah!

Salah sawijining fitur utama Pompa Sirkulasi Pendinginan yaiku efisiensi energi. Dibangun kanthi teknologi paling anyar, pompa nggunakake daya minimal nalika isih menehi kinerja pendinginan sing nyengsemake. Iki tegese sampeyan ora kudu kuwatir babagan tagihan energi sing dhuwur nalika njaga omah utawa papan kerja.

Ing ngisor iki introduksi saka GD Series .Iku wesi cast ing baris pump kang digunakake digunakake ing air conditioning tengah Bangunan, Sistem Sirkulasi Banyu panas Bangunan & Mansions & Mansions, circulation pipa saka tanduran lan irigasi tetanèn. kanggo mbantu sampeyan luwih ngerti pompa banyu industri Risefull. Welcome pelanggan anyar lan lawas kanggo terus kerjo bareng karo kita kanggo nggawe mangsa luwih apik bebarengan.

Detail Produk

Cooling Circulation Pump

Kondisi Kerja

● Cairan resik tanpa ngalangi penundaan, ora agresif

● Layanan Terus-terusan :S1

● Tekanan Maksimum: 10 Bar

● Suhu Cairan: 3 ℃ ~ 90 ℃

● Suhu sekitar: <40 ℃

● Isolasi: F

● Proteksi: IP54

Definisi Model

Cooling Circulation Pump

mbledhos View OF Komponen Utama

Cooling Circulation Pump

Dhaptar Komponen Utama Konfigurasi Standar 〇 Konfigurasi Opsional
NO.	Komponen	Spesifikasi/Karakteristik Konstruksi
1	BODY POMPA	Cast Iron HT200, Electro-coating Rampung (Uji Tahan Semprotan Uyah Kanggo 300+ Jam)
2	IMPELLER	Cast Iron HT200, Electro-coating Rampung (Uji Tahan Semprotan Uyah Kanggo 300+ Jam)
3	Seal Mekanik	19BND Type（Furan Impregnation Graphite+SIC，Gunakake Umur 25.000+ Jam）
4	krenjang	Cast Iron HT200, Electrocoating Rampung (Uji Tahan Semprotan Uyah Kanggo 300+ Jam)
5	Bantalan werni	● C&U 〇 TPI (Taiwan)
6	Poros Motor	● Baja Las: Baja Tahan Karat 304 (Sisi Pompa)+Baja Karbon (Sisi Motor)
7	Kothak Terminal	Aluminium ADC 12
8	Papan Terminal	Flame Retarding PBT
9	Perumahan Motor	Aluminium ADC 12
10	Penggemar	●Plastik PP 〇 Nylon PA6
11	Cover Kipas Angin	Plat Baja Tarik
12	Kabel Plug	● 3 Kabel Pengujian Inti 〇 Kabel Kustomisasi Plug
13	Motor	●IE2 Motor ◯ Customized 60 HZ Motor

Model	Impeller Diameter	Kapasitas Dirating	Rated Kepala	Efisiensi	RPM	Daya Motor	NPHS	Inlet / metu
Model	Impeller Diameter	Q/m³/jam	H (m)	(%)	(r/min)	(kW)	(M)	Inlet / metu
40GD16-11-1.1T	125	8/11/14.5	17/16/14	47/57/54	2900	1.1	2.3	40
40GD20-6.3-1.1T	125	4.4 / 6.3 / 8.3	21/20/18	41/46/43	2900	1.1	2.3	40
40GD20-12.6-1.5T	125	8.8/12.6/16.3	21.2/20/17.8	49/58/57	2900	1.5	2.3	40
40GD28-5.9-1.5T	160	4.1 / 5.9 / 7.8	29/28/26.3	34/39/39	2900	1.5	2.3	40
40GD28-11.7-2.2T	160	8.2 / 11.7 / 15.2	29/28/26	44/41/50	2900	2.2	2.3	40
40GD36-5.3-2.2T	200	3.7/5.3/7	38/36/34.5	23/29/27	2900	2.2	2.3	40
40GD32-12.5-3T	160	8.8/12.5/16.3	33/32/30	45/52/51	2900	3	2.3	40
40GD36-10.6-3T	200	7.5 / 10.6 / 13.8	37/36/34	35/44/42	2900	3	2.3	40
40GD44-5.9-3T	200	4.1 / 5.9 / 7.8	45/44/42	26/31/30	2900	3	2.3	40
40GD44-11.7-4T	200	8.3 / 11.7 / 15.3	45/44/42	37/45/45	2900	4	2.3	40
40GD50-6.3-4T	200	4.4 / 6.3 / 8.3	51/50/48	26/33/32	2900	4	2.3	40
40GD60-5.5-4T	250	3.8/5.5/7	61.5/60/56	23/27/26	2900	4	2.3	40
40GD50-12.5-5.5T	200	8.8/12.5/16.3	51.2/50/48	38/46/46	2900	5.5	2.3	40
40GD70-5.9-5.5T	250	4.1 / 5.9 / 7.8	72/70/65	24/28/27	2900	5.5	2.3	40
40GD70-11.6-7.5T	250	8.2 / 11.6 / 15.2	71/70/68	28/38/39	2900	7.5	2.3	40
40GD80-6.3-7.5T	250	4.4 / 6.3 / 8.3	82/80/74	24/28/28	2900	7.5	2.3	40

Model	Ukuran njaba (mm)						Packing Ukuran			Bobot (kg)
Model	L	H	h	V	W	DN	dawa	jembar	dhuwur	Bobot (kg)
40GD16-11-1.1T	339	415	95	120	70	40	55	36	41.5	34.8
40GD20-6.3-1.1T	314	410	90	120	70	40				34.5
40GD20-12.6-1.5T	339	430	95	120	70	40				39.5
40GD28-5.9-1.5T	352	420	85	120	70	40				38.6
40GD28-11.7-2.2T	352	445	85	120	70	40				41.2
40GD36-5.3-2.2T	372	470	94	130	80	40				40.4
40GD32-12.5-3T	359	505	100	130	80	40	63	43	46	54.7
40GD36-10.6-3T	394	500	100	130	80	40				55.2
40GD44-5.9-3T	372	495	94	130	80	40				54.6
40GD44-11.7-4T	394	530	100	130	80	40				62
40GD50-6.3-4T	372	525	94	130	80	40				62.8
40GD60-5.5-4T	439	535	100	130	80	40				64
40GD50-12.5-5.5T	394	580	100	130	80	40	71	52	49	85
40GD70-5.9-5.5T	439	580	100	130	80	40				85.6
40GD70-11.6-7.5T	474	585	100	160	100	40				90.2
40GD80-6.3-7.5T	439	580	100	130	80	40				91.4
