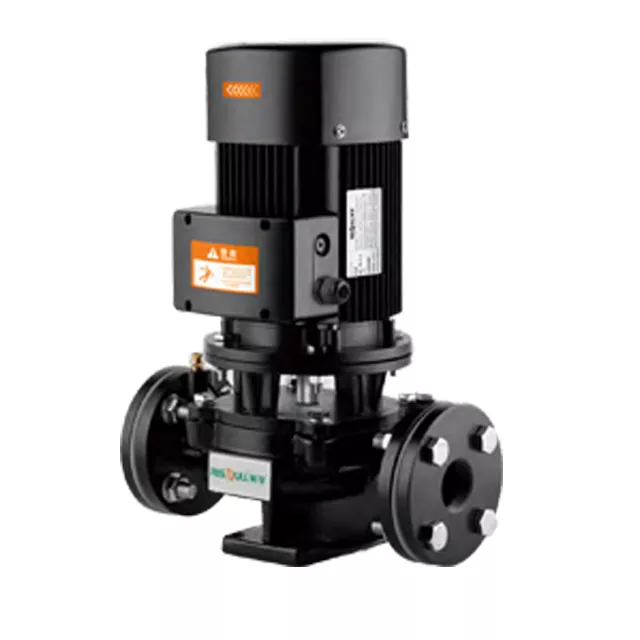

High Pressure Water Pump Kanggo Sirkulasi

Model:65GD

RISEFULL® minangka pimpinan profesional China High Pressure Water Pump For Circulation produsen kanthi rega sing cukup. Sugeng rawuh kanggo hubungi kita.

Kirim Pitakonan

Deskripsi Produk Data Kinerja Dimensi Instalasi

Apa sampeyan kudu ngedhunake banyu ing papan industri sing gedhe utawa mung pengin njaga blumbang utawa kebon sampeyan kanthi apik, pompa iki bisa ditindakake. Gampang kanggo nginstal lan njaga, dadi solusi tanpa repot kanggo sapa wae sing pengin nambah sirkulasi banyu.

Salah sawijining mupangat utama Pompa Air Tekanan Tinggi Kanggo Sirkulasi yaiku motor sing kuat. Kanthi motor sing ngasilake tenaga kuda sing cukup kanggo mindhah banyu kanthi volume gedhe, pompa iki cocog kanggo aplikasi sing mbutuhake daya sirkulasi.

Ing ngisor iki introduksi saka GD Series .Iku wesi cast ing baris pump kang digunakake digunakake ing air conditioning tengah Bangunan, Sistem Sirkulasi Banyu panas Bangunan & Mansions & Mansions, circulation pipa saka tanduran lan irigasi tetanèn. kanggo mbantu sampeyan luwih ngerti pompa banyu industri Risefull. Welcome pelanggan anyar lan lawas kanggo terus kerjo bareng karo kita kanggo nggawe mangsa luwih apik bebarengan.

Detail Produk

High Pressure Water Pump For Circulation

Kondisi Kerja

● Cairan resik tanpa ngalangi penundaan, ora agresif

● Layanan Terus-terusan :S1

● Tekanan maksimum: 10 Bar

● Suhu Cairan: 3 ℃ ~ 9 ℃

● Suhu sekitar: <40 ℃

● Isolasi: F

● Proteksi: IP54

Definisi Model

High Pressure Water Pump For Circulation

mbledhos View OF Komponen Utama

High Pressure Water Pump For Circulation

Dhaptar Komponen Utama Konfigurasi Standar 〇 Konfigurasi Opsional
NO.	Komponen	Spesifikasi/Karakteristik Konstruksi
1	BODY POMPA	Cast Iron HT200, Electro-coating Rampung (Uji Tahan Semprotan Uyah Kanggo 300+ Jam)
2	IMPELLER	Cast Iron HT200, Electro-coating Rampung (Uji Tahan Semprotan Uyah Kanggo 300+ Jam)
3	Seal Mekanik	19BND Type（Furan Impregnation Graphite+SIC，Gunakake Umur 25.000+ Jam）
4	krenjang	Cast Iron HT200, Electrocoating Rampung (Uji Tahan Semprotan Uyah Kanggo 300+ Jam)
5	Bantalan werni	● C&U 〇 TPI (Taiwan)
6	Poros Motor	● Baja Las: Baja Tahan Karat 304 (Sisi Pompa)+Baja Karbon (Sisi Motor)
7	Kothak Terminal	Aluminium ADC 12
8	Papan Terminal	Flame Retarding PBT
9	Perumahan Motor	Aluminium ADC 12
10	Penggemar	●Plastik PP 〇 Nylon PA6
11	Cover Kipas Angin	Plat Baja Tarik
12	Kabel Plug	● 3 Kabel Pengujian Inti 〇 Kabel Kustomisasi Plug
13	Motor	●IE2 Motor ◯ Customized 60 HZ Motor

Model	Impeller Diameter	Kapasitas Dirating	Rated Kepala	Efisiensi	RPM	Daya Motor	NPHS	Inlet / metu
Model	Impeller Diameter	Q/m³/jam	H (m)	(%)	(r/min)	(kW)	(M)	Inlet / metu
65GD10-22.3-1.1T	100	15.6/22.3/29	11/10/8.4	65/67/68	2900	1.1	2.5	65
65GD12.5-25-1.5T	100	17.5/25/32.5	13.7 / 12.5 / 10.5	67/69/69	2900	1.5	2.5	65
65GD10-44.7-2.2T	100	32.3/44.7/58	11/10/8	66/72/69	2900	2.2	3	65
65GD16-22.3-2.2T	125	15.6/22.3/29	17/16/14.4	58/66/65	2900	2.2	2.5	65
65GD12.5-50-3T	100	35/50/65	13.8/12.5/10	67/73/70	2900	3	3	65
65GD20-25-3T	125	17.5/25/32.5	21.5/20/18	60/68/67	2900	3	2.5	65
65GD24-21.6-3T	160	15/21.6/28	26/24/20.6	49/58/54	2900	3	2.5	65
65GD16-45-4T	125	31.3/45/58	17.5/16/13.6	66/71/69	2900	4	3	65
65GD32-25-4T	160	17.5/25/32.5	34.4/32/27.5	54/63/60	2900	4	2.5	65
65GD28-23.4-4T	160	16.4/23.4/30.4	30/28/24	54/63/59	2900	4	2.5	65
65GD20-50-5.5T	125	35/50/65	22/20/17	67/72.5/70	2900	5.5	3	65
65GD38-21.8-5.5T	200	15.2/21.8/28.3	40/38/34.5	45/55/55	2900	5.5	2.5	65
65GD32-50-7.5T	160	35/50/65	35/32/28	63/71/70	2900	7.5	3	65
65GD38-43.5-7.5T	200	30,5 / 43,5 / 56,6	40.6/38/33.4	52/65/65	2900	7.5	3	65
65GD50-25-7.5T	200	17.5/25/32.5	52.7/50/45.5	49/58/59	2900	7.5	2.5	65
65GD44-23.5-7.5T	200	16.4 / 23.5 / 30.5	46.4/44/40	48/57/58	2900	7.5	2.5	65
65GD44-47-11T	200	32.8/47/61	47/44/40	54/66/67	2900	11	3	65
65GD70-23.4-11T	250	16.4 / 23.4 / 30.5	17.5/70/67	39/50/52	2900	11	2.5	65
65GD60-21.6-11T	250	15/21.6/28	61/60/57.4	38/49/54	2900	11	2.5	65
65GD80-25-15T	250	17.5/25/32.5	82/80/76.5	39/50/52	2900	15	2.5	65
65GD50-50-15T	200	35/50/65	53.5/50/46	55/67/68	2900	15	3	65
65GD60-43.3-15T	250	30/43.3/56	62/60/54	50/58/58	2900	15	3	65
65GD85-20.6-15T	315	14.4 / 20.6 / 26.8	86/85/83	28/38/40	2900	15	2.5	65

Model	Ukuran njaba (mm)						Packing Ukuran			Bobot (kg)
Model	L	H	h	V	W	DN	dawa	jembar	dhuwur	Bobot (kg)
65GD10-22.3-1.1T	359	455	95	160	100	65	55	36	41.5	42
65GD12.5-25-1.5T	359	495	95	160	100	65				44.3
65GD10-44.7-2.2T	434	495	130	160	100	65				54.5
65GD16-22.3-2.2T	369	480	102	160	100	65				47.6
65GD12.5-50-3T	434	535	130	160	100	65	63	43	46	48
65GD20-25-3T	369	480	102	160	100	65				56.8
65GD24-21.6-3T	399	510	105	160	100	65				66
65GD16-45-4T	434	600	120	160	100	65				65.3
65GD32-25-4T	394	570	105	160	100	65				63.3
65GD28-23.4-4T	399	540	105	160	100	65				66.8
65GD20-50-5.5T	434	600	120	160	100	65	71	52	49	87
65GD38-21.8-5.5T	429	595	105	160	100	65				87.6
65GD32-50-7.5T	439	595	120	160	100	65				91.6
65GD38-43.5-7.5T	489	600	135	160	100	65				91.8
65GD50-25-7.5T	429	595	105	160	100	65				91.5
65GD44-23.5-7.5T	429	595	105	160	100	65				91.5
65GD44-47-11T	489	715	135	160	100	65	83	63	67	166.2
65GD70-23.4-11T	509	695	120	180	120	65				165.5
65GD60-21.6-11T	509	695	120	180	120	65				165.8
65GD80-25-15T	519	695	120	180	120	65				176
65GD50-50-15T	489	715	135	160	100	65				176
65GD60-43.3-15T	519	705	130	180	120	65				176
65GD85-20.6-15T	584	705	130	180	120	65				176
